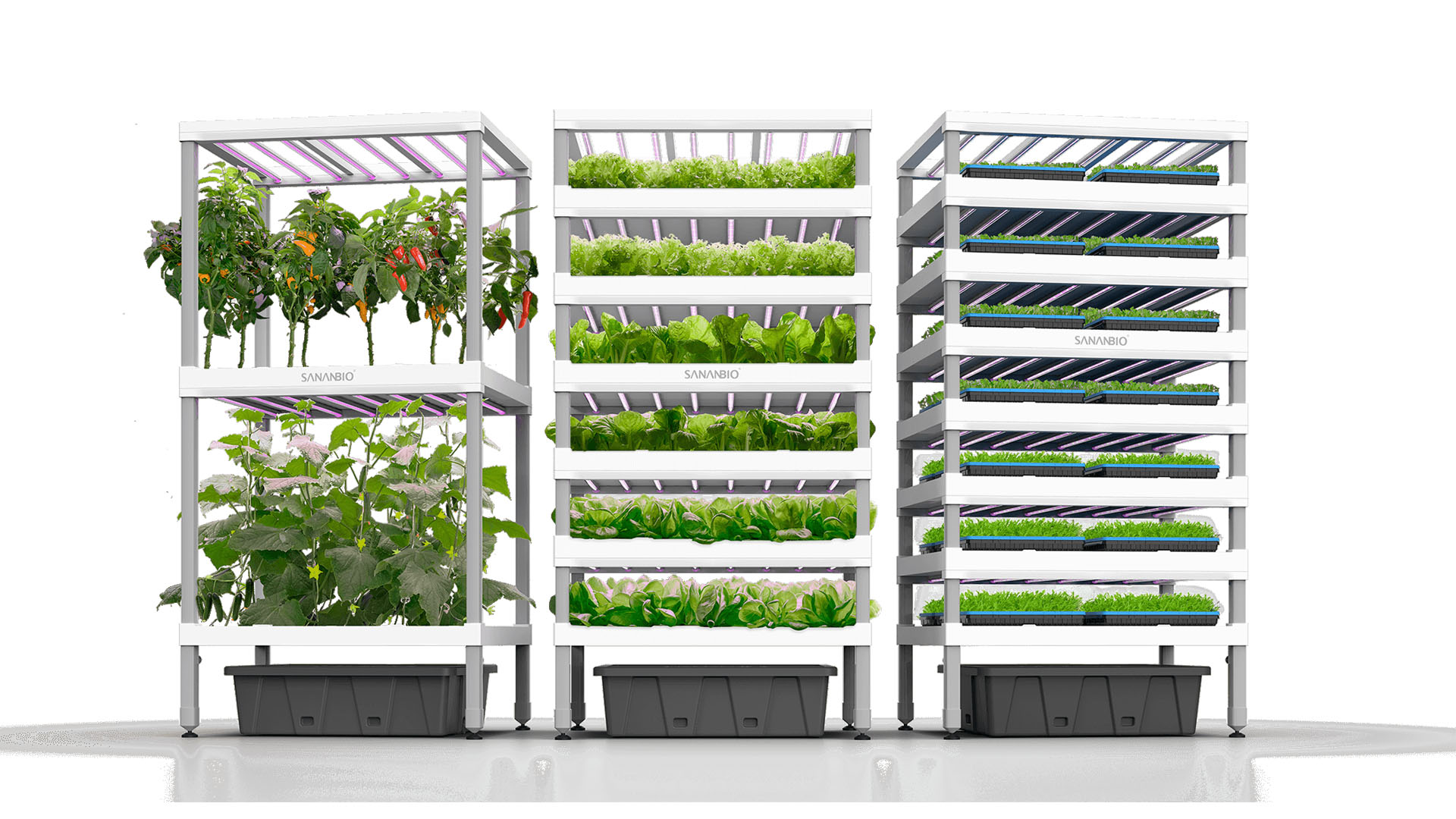

Fast to assemble, easy to use and versatile in application, RADIX is standardizing vertical farming with specialized light recipes and NFT-DWC hybrid irrigation modes.
RADIX ADVANTAGE INCLUDES:
Maintain control over your crops – Increased yields, quality and profits
Configurable Spacing – 4 light-to-bed heights ready to be used for a variety of crops.

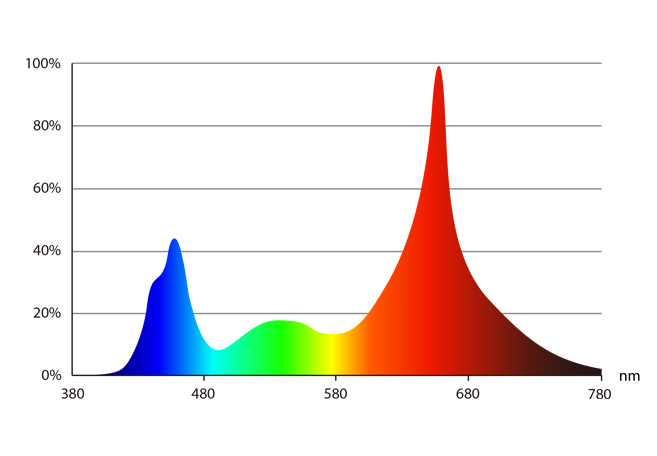

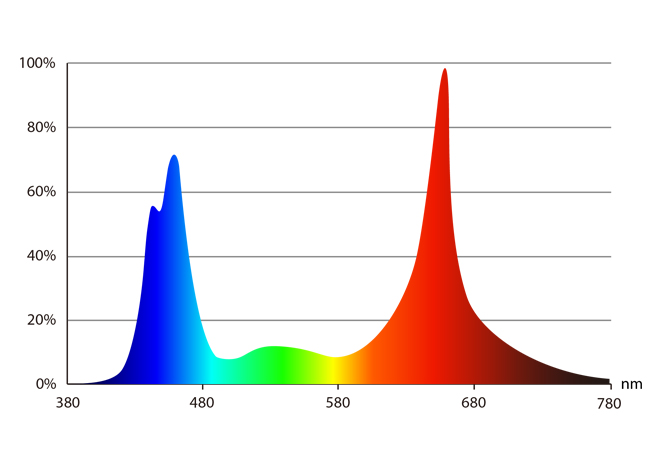

Independent Lighting System – SANANBIO proprietary LED and 80+ light recipes optimize the plant growth of 300+ cultivars throughout their life stages.
Germination
Vegetative

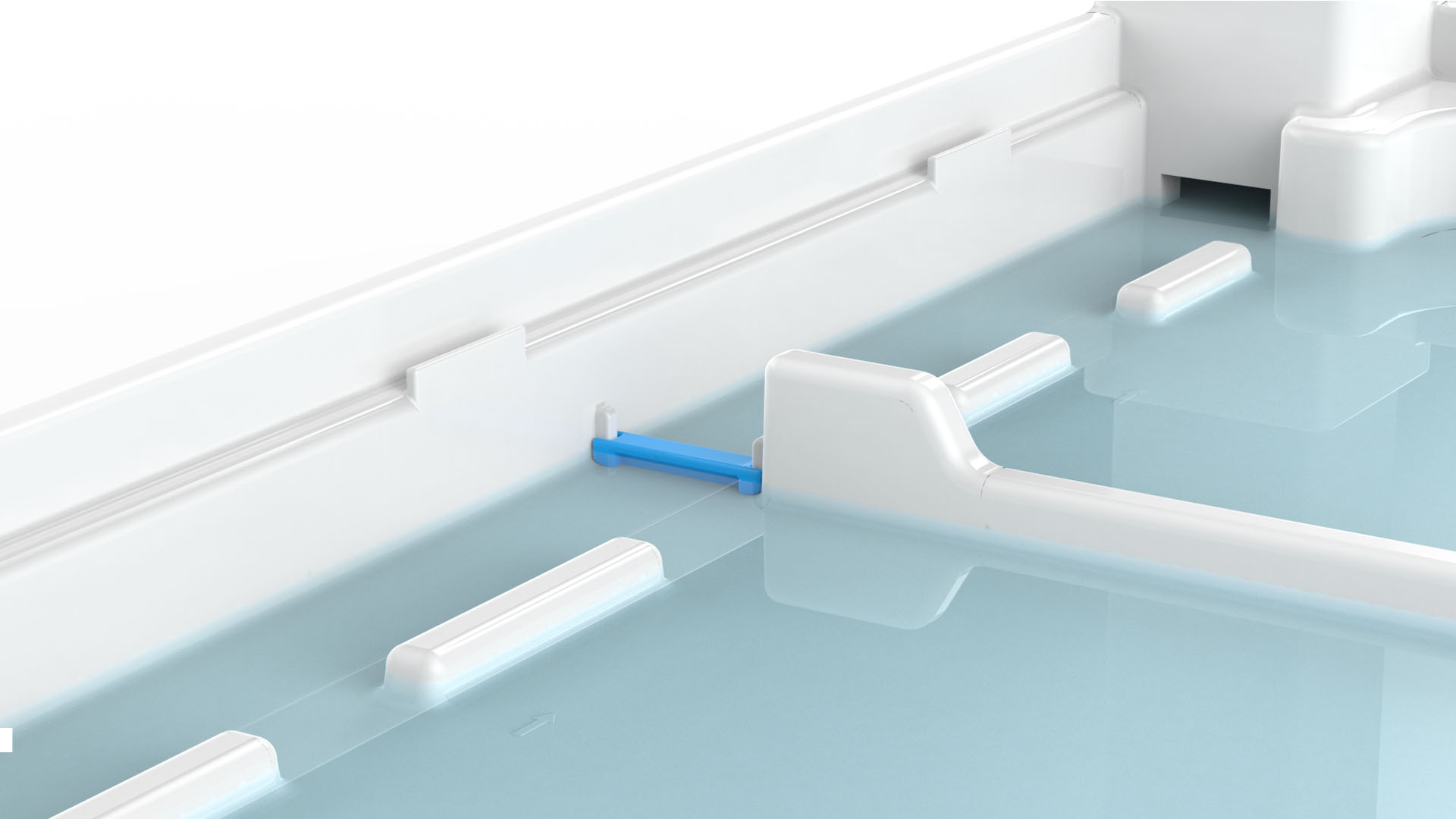

Adjustable Water Level – Retaining dams and Flow Regulators allow Radix to have a hybrid system of NFT & DWC with integrated gravity-driven water circulation that is convertible between shallow flow and deep flow.

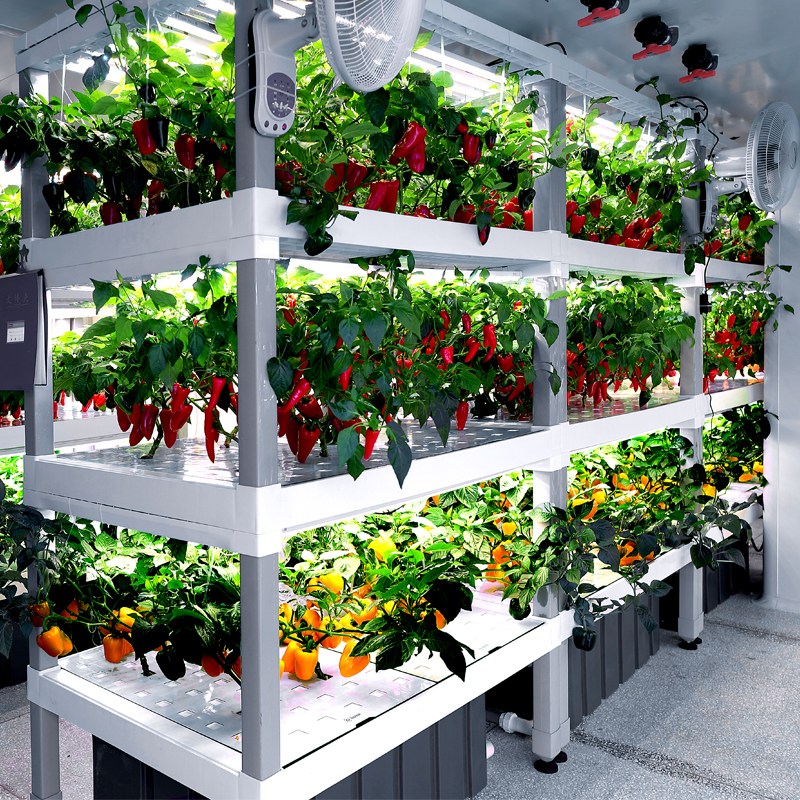

The RADIX Systems are a great option for operations looking to save space. Instead of the channels being spread out of a single plant, they are stacked on top of each other, creating a system that allows operations to better utilize their overhead space. Each tier of RADIX system can be outfitted with LED lights, giving plants access to abundant lighting, even in a small, indoor grow room where space is limited.
Specifications:
| Product Name | RADIX |
| Dimension [L*W*H) | 1,346*942*(2,200-2,863) mm |
| Growing Surface | 70 sq.ft. |
| Light to Bed Height | 7.87"-74.41" |
| Plant Sites/Raft | 54 holes/90 holes/180 holes |
| Number of Lights | 48 pieces (8 pieces/layer) |
| Avg. PPFD | 220-240 μmol/s/m² |
| Voltage | CN&EU 220-240 V-50/60 Hz UL 100-277 V- 50/60 Hz |
| Power | 552 W/648 W |
| Grow Light Lifetime | 50,000 hrs |
| IP Rating | IP 65 |
| Net Weight | <366 lbs |
| Rating | IP54 |
| Dimension | 582.8*127.6*79.8mm |
| Material | PP |
