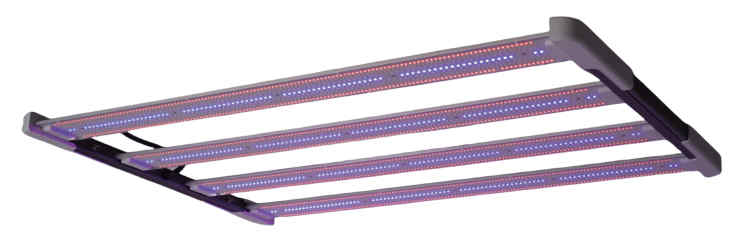

PHX2.0 is upgraded version of PHX1.1, achieving higher efficiency of 2.8 µmol/J and higher power.
Dual dimming driver, higher compatibility with different controller.
Various mounting way for different racks.
Average PPFD up to 1,220 µmol/㎡/s and optical uniformity higher than 0.9 over a 4’x4’ (122×122 cm) canopy.
Features：
2.0 products continue the design language and style of phoenix series, the overall plastic and metal material collocation complement each other, the main body structure is solid to enhance the durability of products
The power supply and the lamp are split, the product can be folded, and the installation process becomes more convenient and time saving without the use of tools.
The high efficiency LED chip has excellent performance, the whole lamp provides luminescence efficiency of more than 2.8umol/ s, and effective light quantum number of 2100umol/s.
The LED light source board is made of high-efficiency cooling aluminum, with a large enough size to take away a lot of heat, so that the temperature of the lamp body can be lower than 65℃ (based on A25 ℃), providing guarantee for stable output.
Integrated design power supply, integrated power input, DC output, dimming interface. And knob dimmer, functional and simple appearance.
The dimming interface adopts RJ12 specification and ADAPTS to lighting controller for group connection control. With dimming, knob can also be independent dimming.
Lighting Effect Diagram：
Spectrum：
